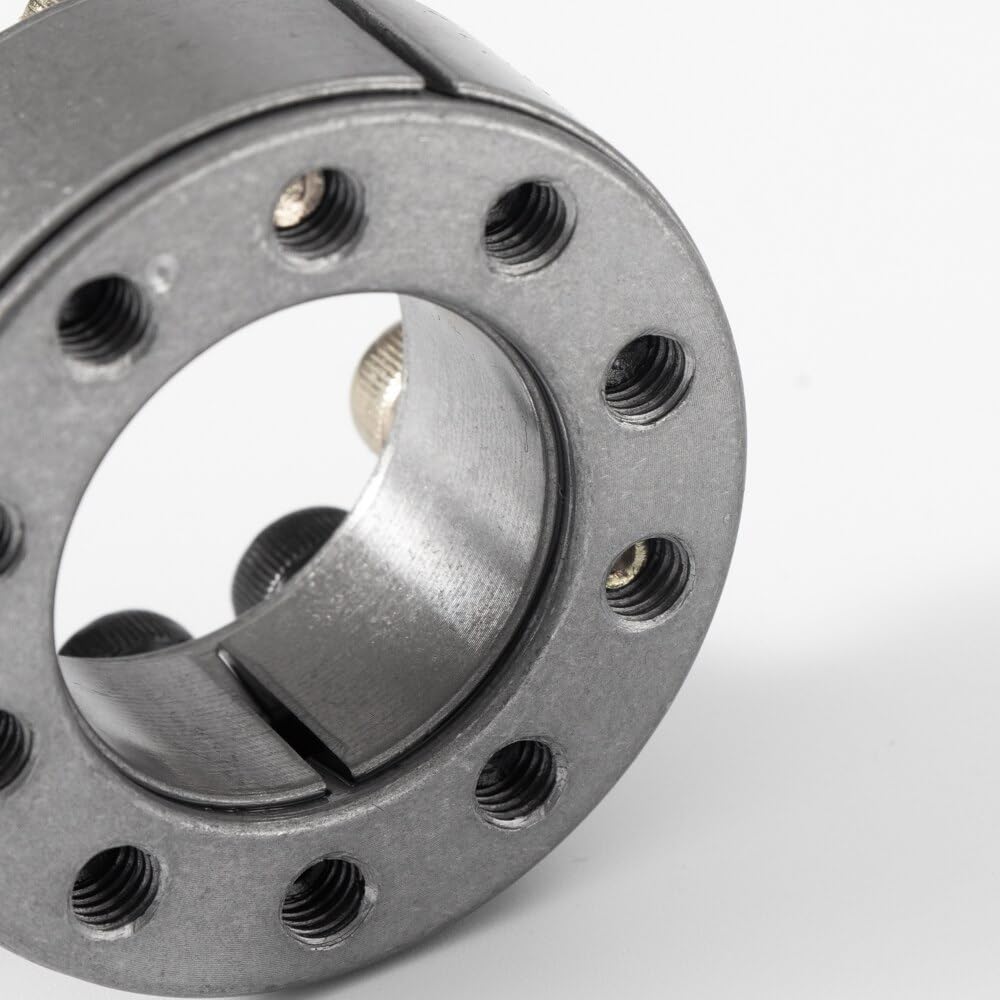

Tool Part for RLK200 Self-Centering Locking Device Locking Assembly Locking Hub Shaft Power Lock Z2 Model 2pcs - (Color: 10)

Item Description:Product Description1 35x602 40x653 55x854 60x905 70x1106 75x1157 90x1308 95x1359 100x14510 80x12011 18x4712 19x4713 20x4714 22x4715 24x5016 25x5017 28x5518 30x5519 32x6020 38x6321 38x6522 42x7223 42x7524 45x7525 48x8026 50x8027 65x9528 85x12529 150x20030 110x15531 130x18032 140x19033 150x20034 160x210Friends, welcome, if you have any questions about the product, or if you want to order in large quantities, you can contact me and I will give you the Email: b15802678096 sina.com WhatsApp: +8615802678096Description of Locking Device Assembly Z2 Power Transmission Component Cone Clamping Elements It can replace single keywey and spline ,in order to realize the contion between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub ,inner loop and shaft are produced.When bearing the weight and loading depend on contion power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft .Data sheet of Locking Device Assembly Z2 Power Transmission Component Cone Clamping Elements Model Z2 Cone Clamping ElementsPressure on Shaft (N/mm2) 120Pressure on Hub (N/mm2) 92-108Rated Load (kN.m) Force 31-1124Torque 0.298-257.399Inner Race Size (mm) 19-280Outer Race Size (mm) 47-355Thickness (mm) 26-84Weight (Kg) 0.2-19.2Catalogue of Locking Device Assembly Z2 Power Transmission Component Cone Clamping ElementsProduction FlowPackaging & Item Specification:Bore size(mm): 19-280Outer race size(mm): 47-355Weight (Kg): 0.2-19.2

• Bore size(mm): 19-280
• Outer race size(mm): 47-355
• Weight (Kg): 0.2-19.2
